TWS耳机专用电源治理IC

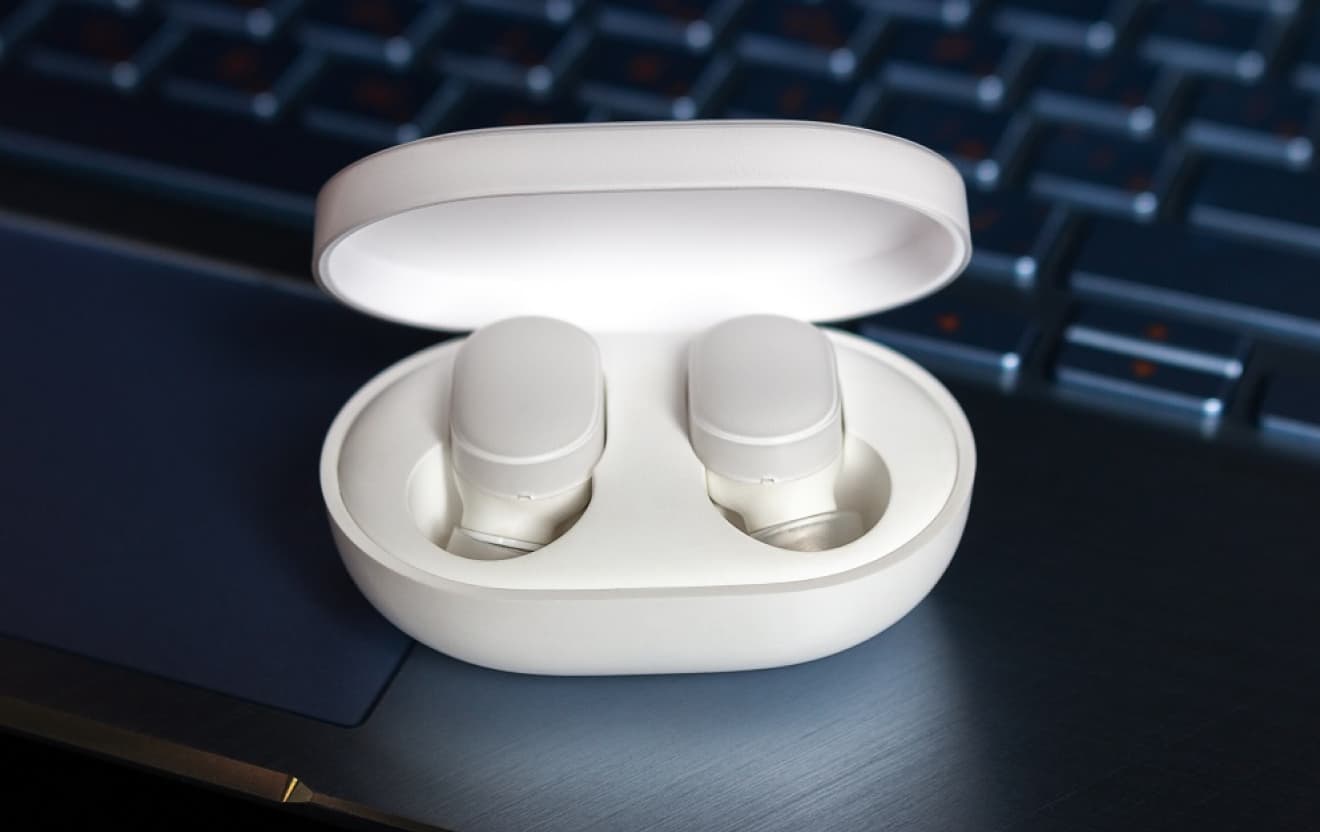

凯时集团创新提供的TWS耳机专用电源治理IC ，集成了OVP过压；ぁ⒖匦统涞纭OOST升压、通讯电路、NTC检测 ，以及LDO输出给表部设备供电等职能 ，宽泛用于TWS耳机、无线麦克风、助听器、智能眼镜等产品。
产品选择器
3 个了局
Loading
|
Part No
|
Status
|
Absolute VUSB (V)Max
|
Control Topology
|
Charging Current (A)Max
|
Load Current (A)Max
|
Charging Efficiency (%)Max
|
CV Charge Voltage (V)
|
Quiescent Current (μA)
|
LDO
|
Control Interface
|
Temperature Operating Range(°C)
|
Package
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP | 20 | Switch-Mode | 1.2 | 0.6 | 95 | 4.1/4.2/4.3/4.35/4.4 @0.5% | - | 3.3V/50mA | I2C | -20 to +85 | QFN24 | |
| MP | 20 | Switch-Mode | 1.5 | 1 | 95 | 4.1/4.2/4.3/4.35/4.4 @0.5% | - | 3.3V/80mA | I2C | -20 to +85 | QFN24 | |
| MP | 20 | Switch-Mode | 1.5 | 1 | 95 | 4.1/4.2/4.3/4.35/4.4 @0.5% | - | 3.3V/50mA | I2C | -20 to +85 | QFN24 |
